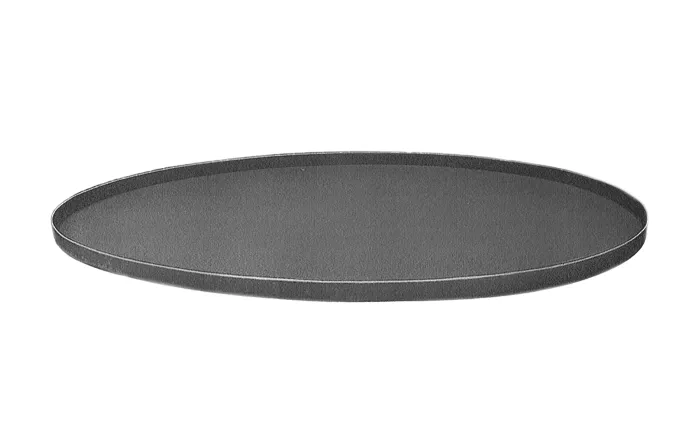

Flanged-Only Tank Heads
A practical solution for non-pressure tanks, vessel closures, and custom fabrication projects.
Flanged-only tank heads provide a clean, formed edge without a dished profile, making them an ideal choice for tanks and equipment that don't require pressure-rated construction. Commercial Metal Forming manufactures flanged-only heads in a wide range of diameters, thicknesses, and materials to support OEMs, fabricators, and manufacturers across a variety of industrial applications.
Over 300 part numbers in stock and ready to ship
Flanged Only specifications
- Head Type: Flanged-Only
- Standard: Non-Code
- Outside Diameter: 12"–240"
- Material Thickness: 14 GA–1 ½"
- Materials: Carbon steel, stainless steel, aluminum, and other ferrous and non-ferrous metals
- Custom Forming: Available
- Lead Time: Based on project requirements
What Are Flanged-Only Tank Heads?
Unlike flanged and dished heads, flanged-only tank heads are formed with a straight flange but without a dished crown. This simpler geometry makes them well suited for tanks and fabricated equipment that do not operate under pressure while still providing a consistent edge for welding and assembly. Their versatility allows them to be incorporated into a wide range of industrial products where ease of fabrication and dimensional accuracy are important.
Key Attributes:
- Straight flanged edge without a dished profile
- Designed for non-pressure applications
- Simplifies fabrication and assembly
- Available in standard and custom dimensions
Common Applications
- Atmospheric storage tanks
- Industrial containers
- Equipment enclosures
- Process equipment
- OEM fabricated products
- General industrial manufacturing
Frequently asked questions
What is a flanged-only tank head?
A flanged-only tank head features a formed flange without a dished crown. It is commonly used in tanks and fabricated equipment that do not require pressure-rated construction.
What materials are available?
Commercial Metal Forming manufactures flanged-only heads in carbon steel, stainless steel, aluminum, and other ferrous and non-ferrous metals depending on application requirements.
What sizes can you manufacture?
Flanged-only tank heads are available in diameters from 12 inches to 240 inches with material thicknesses ranging from 14 gauge to 1 ½ inches.
Can flanged-only heads be manufactured to custom specifications?
Yes. We manufacture flanged-only heads in custom diameters, materials, thicknesses, and flange configurations to meet your fabrication and assembly requirements.
Let's talk specs
Commercial Metal Forming can deliver precision-formed tank heads that meet your exact requirements. What is your project?
