ASME 80-10 Flanged & Dished Tank Heads
A specialized flanged and dished head profile manufactured to meet ASME pressure vessel requirements.
ASME 80-10 flanged and dished tank heads combine proven pressure vessel performance with a geometry specified for particular fabrication and engineering requirements. Commercial Metal Forming manufactures these heads in a wide range of diameters, thicknesses, and materials, providing OEMs, fabricators, and vessel manufacturers with reliable, ASME-compliant components for both standard and custom applications.
Over 300 part numbers in stock and ready to ship

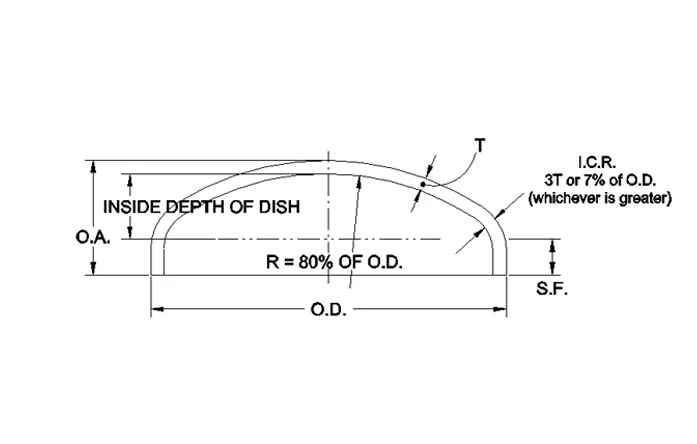

ASME 80-10 Flanged & Dished specifications
- Head Type: 80-10 Flanged & Dished
- Standard: ASME
- Outside Diameter: 24″–300″
- Nominal Thickness: 10 GA–1.5”
- Materials: Carbon steel, stainless steel, and other ferrous and non-ferrous alloys
- Custom Forming: Available
What are ASME 80-10 Flanged & Dished Tank Heads?
ASME 80-10 flanged and dished tank heads are a variation of the traditional flanged and dished design, manufactured for applications requiring this specific head geometry. Like other ASME flanged and dished heads, they feature a formed dish and flanged edge that create a dependable weld connection while meeting the performance requirements of pressure vessel construction. Their specialized profile makes them a practical solution for engineered vessels built to customer specifications.
Key Attributes:
- Manufactured to ASME pressure vessel requirements
- Specialized 80-10 flanged and dished geometry
- Suitable for standard and custom vessel fabrication
- Available in a broad range of materials and dimensions
Common Applications
- Pressure vessels
- Process tanks
- Air receivers
- Chemical processing equipment
- Industrial storage vessels
- Energy and utility systems
- OEM vessel fabrication
Frequently asked questions
What is a 80-10 flanged and dished tank head?
A 80-10 flanged and dished tank head is an ASME head manufactured with a specific flanged and dished geometry for pressure vessel applications. It is selected when a project or vessel design calls for a 80-10 profile.
What materials are available?
Commercial Metal Forming manufactures ASME 80-10 flanged and dished heads in carbon steel, stainless steel, and other ferrous and non-ferrous alloys to meet project requirements.
What sizes are available?
ASME 80-10 flanged and dished tank heads are available in diameters from 24 inches to 300 inches with material thicknesses ranging from 10 gauge to 1½ inches.
Can these heads be manufactured to custom specifications?
Yes. We manufacture both standard and custom ASME 80-10 flanged and dished tank heads to meet customer specifications for size, material, thickness, and application.
